Combow | The Premium Data Cabinet
300mm Deep
530mm wide x 300mm deep
Available in 4U, 6U & 9U
450mm Deep
530mm wide x 450mm deep
Available in 6U, 9U & 12U
600mm Deep
530mm wide x 600mm deep
Available in 6U, 9U & 12U
Professional & Premium

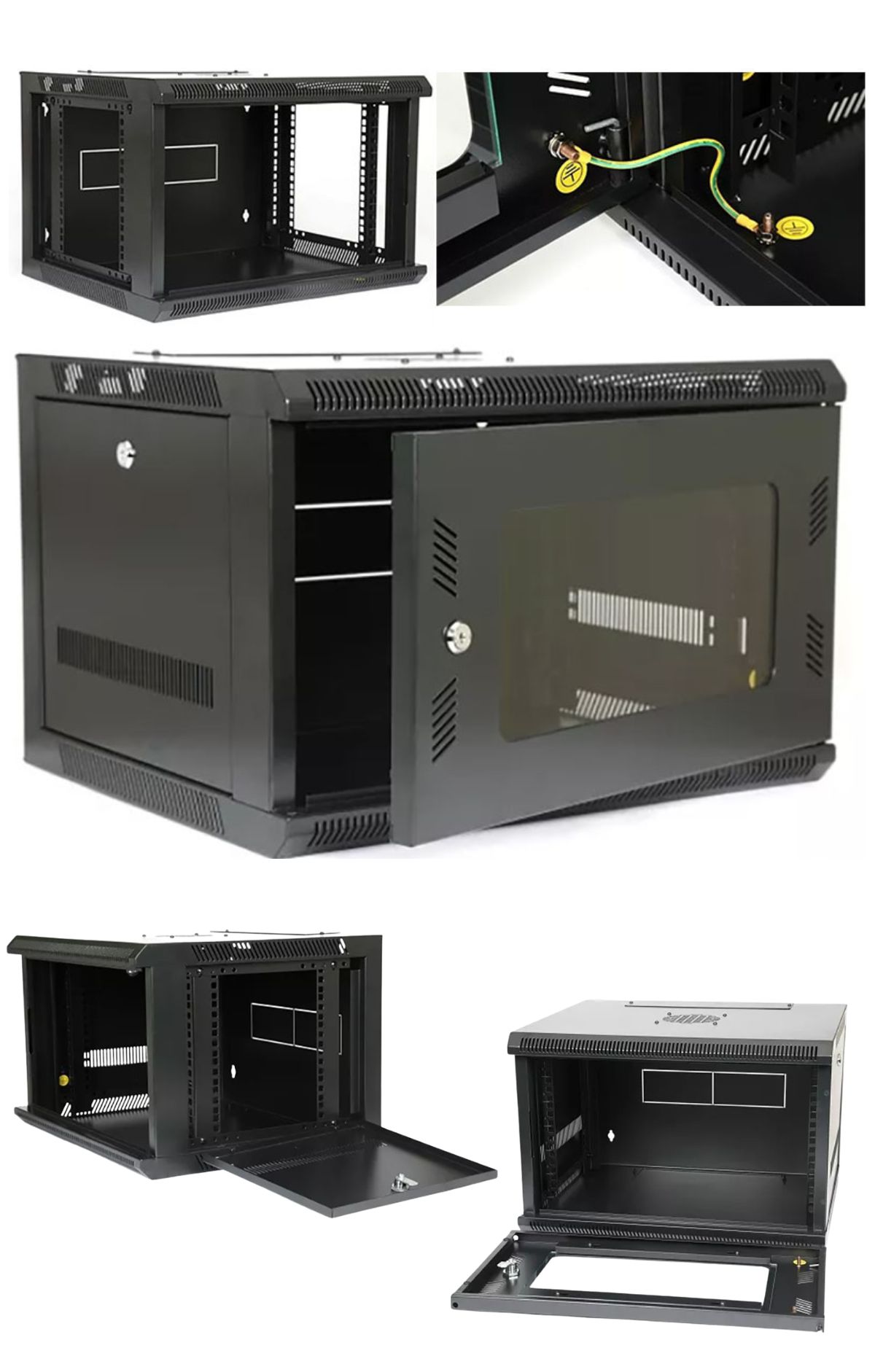

The Combow range includes a wall bracket for easy installation by one person – Simply fix the bracket on the wall then hook the cabinet onto the bracket, securing the cabinet to the bracket with screws (included).
The cabinet can then be fixed to the wall with the appropriate wall fixings. Large removable gland plates are on the top and bottom of the cabinet reducing the need for an engineer to alter or enlarge the aperture when putting in or taking out pre-terminated equipment. A brush plate is also supplied to reduce dust ingress.
There is a further cable entry point situated in the rear of the cabinet and front and side ventilation slots. Lockable and reversible toughened glass front door door and removable and lockable side panels. 3 keys are provided which open all cabinet locks.
Inside the cabinet there are 4 profiles and earthing points to use if required (We provide one earth lead that can be used to earth the front door). 450mm deep cabinets will accommodate a shelf with a maximum depth of 300mm. 600mm deep cabinets will accommodate a shelf with a maximum depth of 400mm.
To ensure your product is received in good condition we have included additional packaging within the carton to reduce the risk of damage in transit.
Key Features
• Welded construction black 19” rack mount data cabinet with 1.2mm steel frame
• Compact design with 530mm width enables fitting where space is at a premium
• Rear wall mounting bracket for ease of installation, fixings to secure the cabinet to the bracket are included
• Vented front and side panels
• Removable large top and bottom gland plate to expose a 300mm x 70mm aperture
• Rear panel has knock outs to provide a 300mm x 70mm aperture
• Large cable entry allows certain pre-terminated equipment to be installed into the cabinet
• Lockable & reversible inset front door supplied with tempered glass to BS EN 12150 and 3 keys are
• Removable and lockable side panels
• Earthing points provided inside the cabinet with 1 x earth lead that can be used to attach to the front
• Supplied in cardboard outer carton with polystyrene sheets inside to protect the contents
• Maximum Load 40kg
